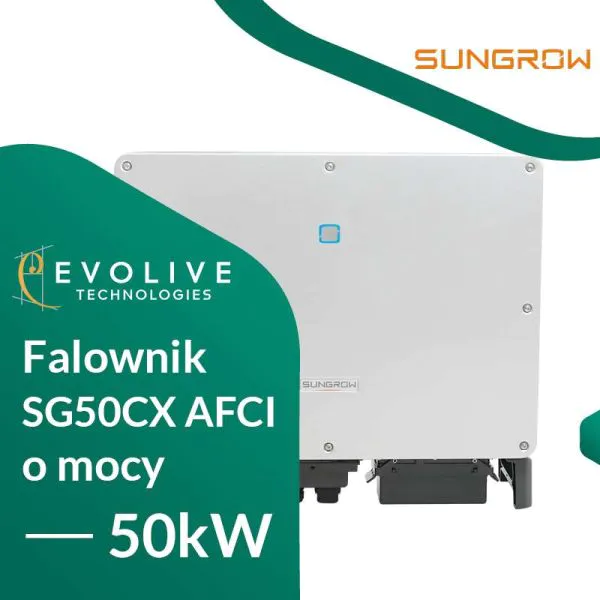

SUNGROW SG50CX AFCI inverter

Sungrow inverters are very safe for private use. Numerous safety features such as arc protection, short circuit protection and AC and DC surge protection ensure a high level of safety. The IP65 protection rating and corrosion protection make the inverter suitable for both indoor and outdoor operation. The user has a real-time view of the inverter’s operation and the software is updated remotely. Worth mentioning is the built-in PID effect reversal function.

Sungrow inverters are:

  • 10-year warranty
  • Simple and quick installation
  • Efficiency approx. 98.4%
  • Communication WiFi, Ethernet, RS485, digital inputs/outputs
  • Protection class IP65
  • Intelligent real-timemonitoring
  • Built-in PID inversion function
  • Natural cooling
  • Network monitoring
  • Corrosion protection
  • Intelligent I-V curve scanning
  • Type II AC and DC overvoltage protection
  • AFCI protection
  • AC short-circuit protection
  • Operating temperature range from -25 to 60°C
  • Certifications and approvals
  • IEC / EN 61000-6-1/2/3/4, IEC / EN62109-1/2, IEC 61727, IEC 62116, IEC 61683, EN50530, AS/NZS 4777.2:2015, VDE-AR-N-4105, DIN VDE0126-1-1, EN50549-1
Produkt dostępny na zamówienie.
  • możesz złożyć zamówienie bez wykonania opłaty za ten produkt;
  • Po złożeniu zamówienia pracownik sklepu skontaktuje się z Państwem w celu ustalenia wszystkich szczegółów
Producent: SUNGROW
Kategorie: Inverters, On-grid
Kod produktu: SG50CX AFCI
Udostępnij:
Facebook
Twitter
LinkedIn
Email

Description

Welcome to the world of Sungrow, a leader in the inverter industry, proudly presenting its rich history and impressive presence in the global market. Foundedin 1997, Sungrow has quickly become a symbol ofinnovation and reliability in inverter manufacturing, ranking among the most influential players in the renewable energy industry.

By the end of 2022, Sungrow had achieved an impressive milestone by installing 340 GW of capacity,making it a global leader among inverter manufacturers. This achievement proves customer trust and the effectiveness of the solutions.

Sungrow’s operations cover 150 countries around the world, which confirms Sungrow’s global reach and adaptability to various market conditions and needs. With a team of 7,000 skilled employees, Sungrow is not only a manufacturing powerhouse, but also a career development destination for professionals from around the world.

The company has the largest Research and Development (R&D) department in the industry, which emphasizes its commitment to innovation and continuous improvement of technology. Global production capacity is 140 GW, of which 50 GW is sold under the Sungrow brand, while the rest supports the production of devices for other renowned brands.

Sungrow has also been recognized among Asia’s 50 Most Innovative Companies and ranked No. 1 by Bloomberg. These accolades demonstrate our continued pursuit of excellence and industry leadership.

Sungrow SG50CX AFCI Inverter

Sungrow Min

The Sungrow CX inverter series are advanced photovoltaic devices designed for maximum efficiency and reliability. Here are their main features:

  1. Q at Night function: Reactive power compensation.
  2. 15A/30A working current: Supports 15A working current per connector and 30A for each MPPT tracker
  3. MC4 EVO II-1100V connectors: High voltage connectors for a safe and durable connection.
  4. SPD DC 1+2, AC 2 protection: High-level surge protection, protecting against network instability.
  5. DC oversizing up to 1.4: Allows the use of more panels than the nominal power of the inverter, increasing system efficiency.
  6. AC Connector or Compartment: Included in the kit for easier installation and connection.
  7. AFCI 2.0 System: Advanced arc flash protection for increased safety.
  8. PID System: Integrated PID system minimizing power loss and increasing efficiency.
  9. Remote Configuration: Possibility to change settings and update software remotely.
  10. I-V scanning: Precise analysis of system performance through current-voltage characteristics.
  11. Starting after dark: Possibility to configure the AC-powered inverter after dark.
  12. CS Anti-Corrosion Protection: The highest level of anti-corrosion protection, ideal for agricultural and coastal areas.
  13. Painted Integrated Circuits: Additional moisture protection for increased durability and reliability.
  14. Energy Export Limitation: A function that allows you to control the amount of energy supplied to the network.
  15. Simple Start-up: Intuitive process of installing and starting the inverter.
  16. Compatibility with Optimizers: The 50CX V123 and 125CX V12 are compatible with power optimizers.
  17. Highest CS Anti-Corrosion Protection: Additional protection for agricultural and coastal areas, ensuring long-lasting performance in difficult conditions.

CX series inverters from Sungrow are an ideal solution for those who are looking for reliable, efficient and easy-to-use photovoltaic devices, ready to cope with various environmental conditions.

Apart from the photovoltaic modules, the inverter is the most important component of the entire installation. Its task is to change the direct current produced by photovoltaic modules into alternating current, which we use in the home installation. In addition to this, it reads and transmits a whole range of parameters regarding the operation of the installation. The information is available in applications or on websites, and both the installer and the owner of the installation can view the operation of the system. The photovoltaic inverter is the heart of the entire installation.

There are three types of inverters:

  • On-grid (grid-tied) – they work with the power grid, they allow sending an excess amount of produced energy to the grid, on which their operation depends. This means that a power grid failure will shut down the inverter for safety reasons.
  • Off-grid (island) – cooperate with energy storage, work independently of the power grid, making them ideal for those living in areas with difficult access to the power grid.
  • Hybrid – they combine the functions of the above inverters, cooperate with energy storage, transmit the excess current produced to the grid and allow the use of current stored in batteries (back-up function) when there is a power outage in the grid. They help raise the facility’s own energy consumption, as energy produced during the day, is stored in the storage and can be used at night.

One of the criteria when choosing an inverter is its warranty, which nowadays should be a minimum of 5 years.

Sungrow products:

Sungrow Company:


Evolive Technologies Sp. z o.o.

We are a company that provides customers with renewable energy solutions with passion and diligence. We have been working in the photovoltaic, heat pump, energy storage, and electromobility industries for years. We have experience in the design and implementation of both commercial and residential customer projects.

Our team is made up of specialists who work closely with the client at every stage of the project, from conception and planning, through design and implementation, to technical and post-installation support. Our installers are technically knowledgeable and experienced in installation. Relevant education, as well as years of experience, guarantee that careful installation is carried out in a safe manner.

We offer customers comprehensive solutions that take into account the needs and requirements of the investor, regardless of the scale of the project.



Additional information

Weight 62 kg
Dimensions 782 × 645 × 310 cm

Dane techniczne

falownik sungrow sg350hx v135 s (kopia)

falownik sungrow sg33cx afci

Pliki do pobrania

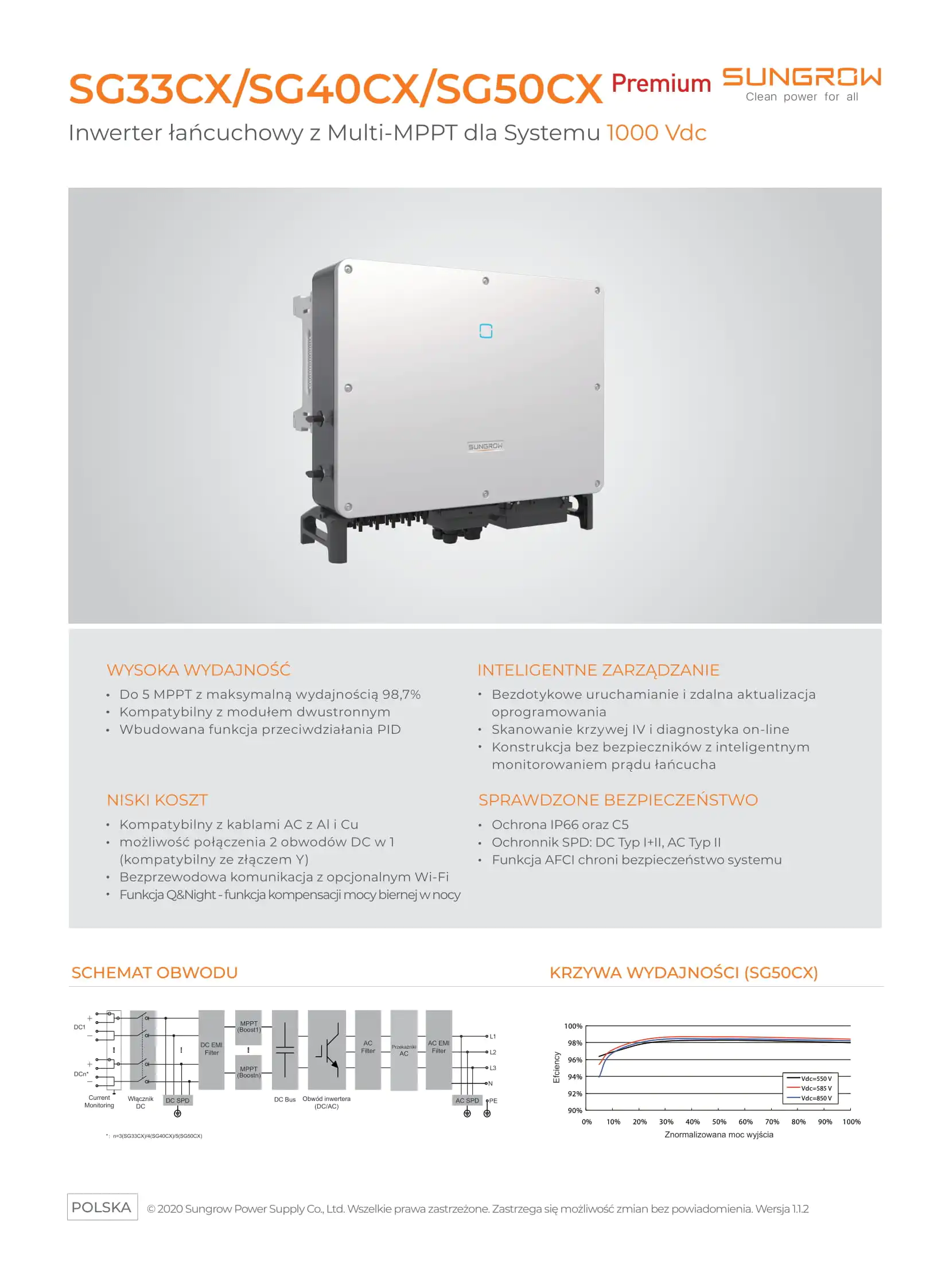

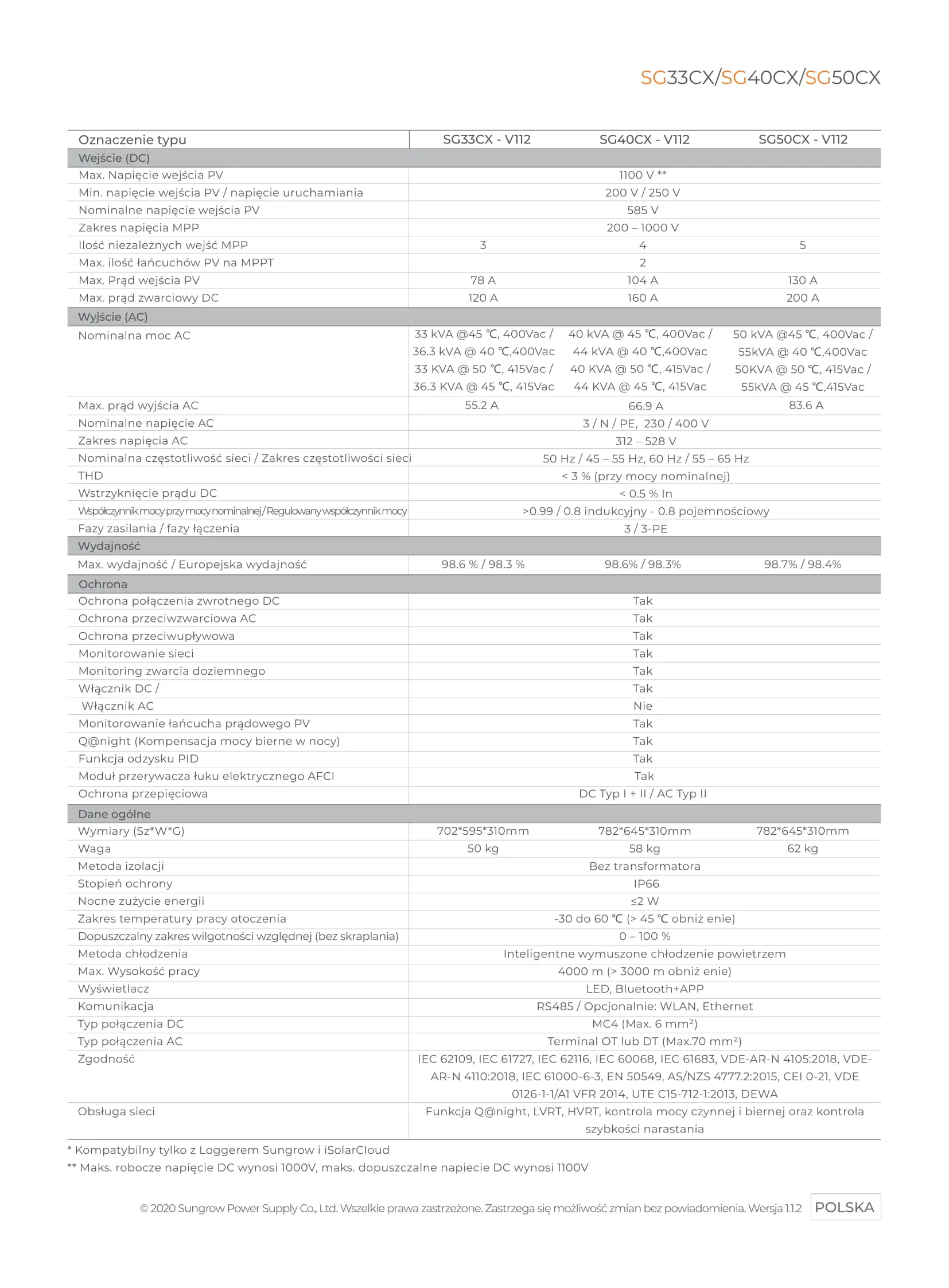

SUNGROW SG33CX – SG50CX – Karta katalogowa

Sungrow-SG33CX-SG40CX-SG50CX – datasheet
