4 386,00 zł + VAT
The single-phase inverters in the Primo series, developed by Fronius, are perfectly suited for small domestic installations. They are available in the power range from 3.0 kW to 8.2 kW. They are innovative devices that have a built-in communications package that includes energy management functions and many other practical capabilities. With all these features, controlling and monitoring the unit is extremely easy. The Light version does not have a built-in WiFi card for Internet communication.

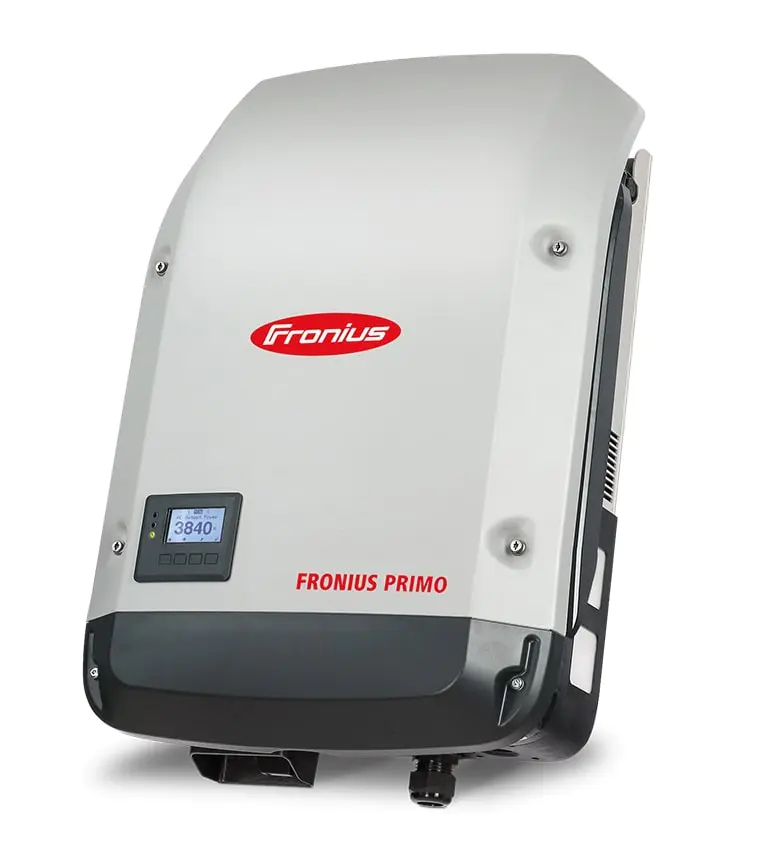

Fronius Primo inverter:
Fronius is a global innovator in photovoltaics. Since 1945, it has specialized in developing advanced renewable energy solutions that enable the efficient collection and use of electricity from panels. With Fronius solutions, solar energy becomes attainable for everyone.
SnapInverter series inverters are distinguished by their clever mounting system, which makes installation and maintenance a breeze. Their innovative design separates the connection section from the power module. They are mounted separately. First, the lightweight connection section is placed on the wall along with full wiring. Then the power module is mounted. The unique opening design simplifies installation and future repairs – the inverter can be seamlessly hung on a wall bracket. If service is needed, only the power module of the inverter needs to be disconnected, there is no need to disassemble the entire unit. All wiring remains intact.
Fronius is the first inverter manufacturer to offer a complete data communication package, including integration of Datalogging, Ethernet, WLAN, web server, energy management and various connectors. This allows the inverter to be easily connected to the Internet via a network cable or WLAN interface. This makes it possible to effectively monitor the status of the photovoltaic plant. Interfaces such as Modbus RTU SunSpec, Modbus TCP, and Fronius Solar API (JSON) also enable integration with third-party components. In addition, open interfaces are available in parallel to the Fronius Solar.web online platform.
SuperFlex Design is a smart combination of technical features that significantly increases flexibility and simplifies the design of photovoltaic installations. Key aspects of SuperFlex Design include two MPP trackers that work with higher system voltages and a wide range of DC input voltages. Each DC input and MPP tracker can handle the total power rating of the inverter, regardless of the orientation of the roof, the presence of shading or the different types of panels. With this advanced architecture, a variety of design aspects can be met with a single inverter model.
Dynamic Peak Manager (DPM) is an innovative MPP tracking algorithm that flexibly modifies its operation in search of the optimal operating point. A unique feature of DPM is its ability to regularly analyze the entire current-voltage characteristic, making it possible to find the global maximum power point (GMPP), even in the case of partial shading.
Fronius inverters are specifically designed for future technological challenges, such as the Smart Grid. Equipped with advanced control functions, called “Advanced Grid Features,” they are perfectly equipped to meet the growing demands of power grids. These features ensure optimal delivery of both reactive and active power, guaranteeing the safe integration of a large number of photovoltaic installations into the grid. In addition, Fronius inverters prevent unwanted power interruptions by monitoring and regulating grid parameters, resulting in minimized losses. With these features, users can enjoy maximum profit from their photovoltaic installation. In addition, thanks to this technology, inverters can dynamically regulate the supply of energy, taking into account the limits of the power supply to the grid through a meter and setting the appropriate limit.
In many countries, distribution system operators are increasingly requiring curtailment of the supply of energy by photovoltaic installations as a condition for connection to the grid. In some cases, this means the need to maintain a so-called zero power supply. With its dynamic power curtailment function, Fronius offers a solution to optimally adapt the supplied energy to the grid requirements. The inverter first meets the energy needs of the household and then reduces the power to the maximum value allowed by the grid operator. This innovative feature even makes it possible to stop supplying energy to the grid altogether, thus meeting the operator’s strict guidelines. Thanks to the intuitive user interface on the inverter’s web panel, you can easily adjust the settings and deliver energy to the grid according to them.
Active cooling technology is based on the use of a single or multiple fans that not only prevent hot spots, but also regulate airflow inside the inverter, maintaining the proper temperature of electronic components. This contributes to extending equipment life, optimizing performance and reducing costs. Active Cooling technology is standard on all Fronius products.
Apart from the photovoltaic modules, the inverter is the most important component of the entire installation. Its task is to change the direct current produced by photovoltaic modules into alternating current, which we use in the home installation. In addition to this, it reads and transmits a whole range of parameters regarding the operation of the installation. The information is available in applications or on websites, and both the installer and the owner of the installation can view the operation of the system. The photovoltaic inverter is the heart of the entire installation.
There are three types of inverters:
One of the criteria when choosing an inverter is its warranty, which nowadays should be a minimum of 5 years.
We are a company that provides customers with renewable energy solutions with passion and diligence. We have been working in the photovoltaic, heat pump, energy storage, and electromobility industries for years. We have experience in the design and implementation of both commercial and residential customer projects.
Our team is made up of specialists who work closely with the client at every stage of the project, from conception and planning, through design and implementation, to technical and post-installation support. Our installers are technically knowledgeable and experienced in installation. Relevant education, as well as years of experience, guarantee that careful installation is carried out in a safe manner.
We offer customers comprehensive solutions that take into account the needs and requirements of the investor, regardless of the scale of the project.
| Weight | 21,5 kg |
|---|---|
| Dimensions | 645 × 431 × 204 cm |
